| Size: | L12.5mxH5.5m |
| Capacity: | 32 p |
| Power: | 35Kw |
| Voltage: | 380V |
| Speed: | 9.5-20 rpm |
| Space it occupies: | 16mx16m |
Buckle up for the ride of your life! The Extreme is a ride like no other that is guaranteed to thrill everyone. Thanks to the Extreme’s versatile control system the ride sequence can be tailored to your specific needs, ranging from high and fast for the adrenaline seekers, to slow and low for those newer to big ride experiences.
One of our most popular Rides, the Extreme was built to the highest specification available in 2010 by Shangang rides. It was our first ride to use LED lighting for brighter effects and energy efficiency. With its beautiful Extreme Sports theme and complex and varying ride patterns, it has been thrilling the crowds ever since and always proves a show stopper.

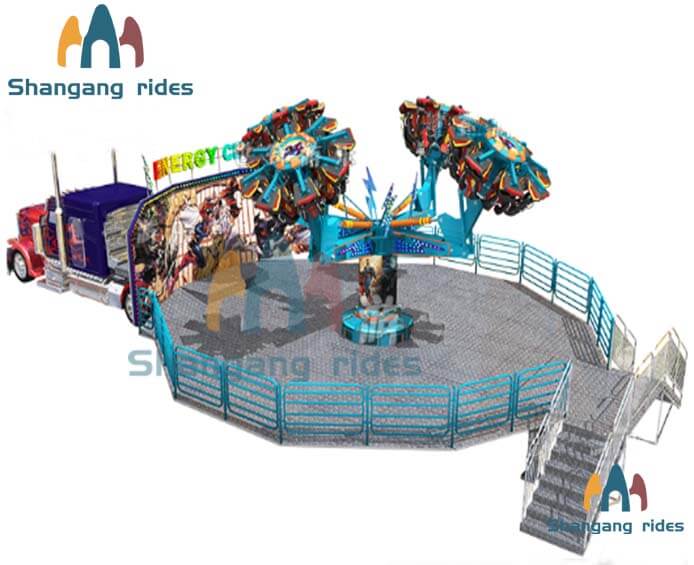

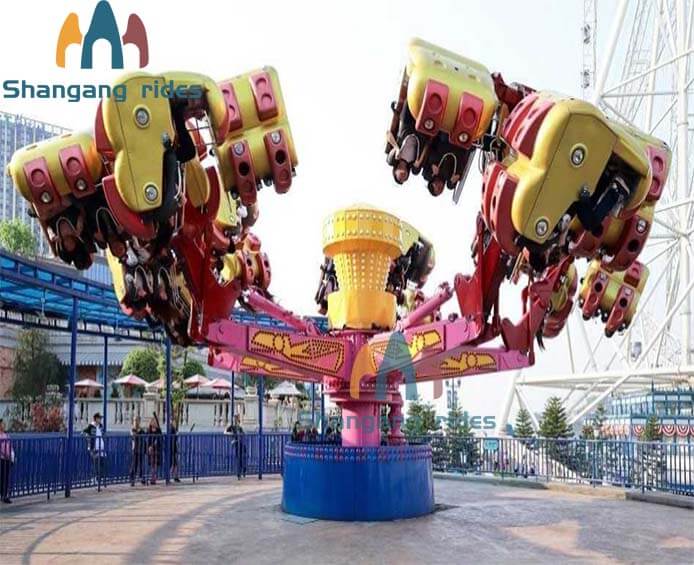

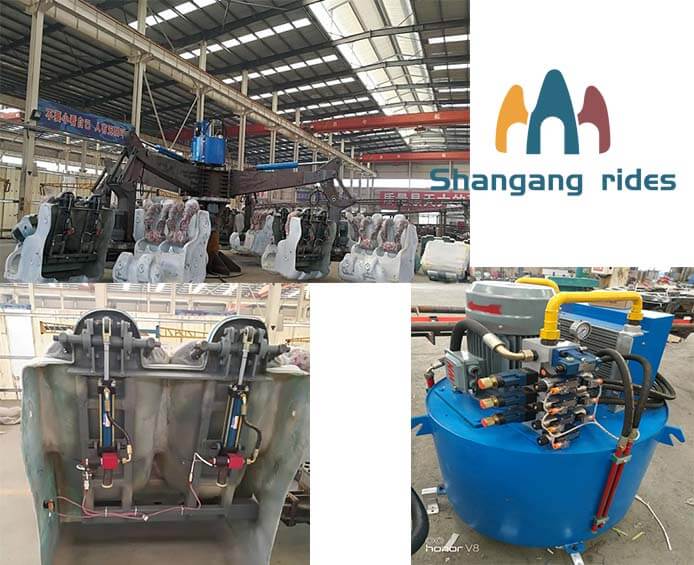

The energy storm drive mode is the combination of hydraulic pressure and motor. The whole equipment is equipped with four extension arms, each of which is connected with a group of seats. Each group of seats is divided into four groups, and each of which can seat two people. That is to say, each extension arm can seat eight people. The whole machine can accommodate 32 people to ride at the same time. The equipment is about 5.5m high, with a rotation diameter of 9m, and a running speed of 9.5rpm to 20 rpm.

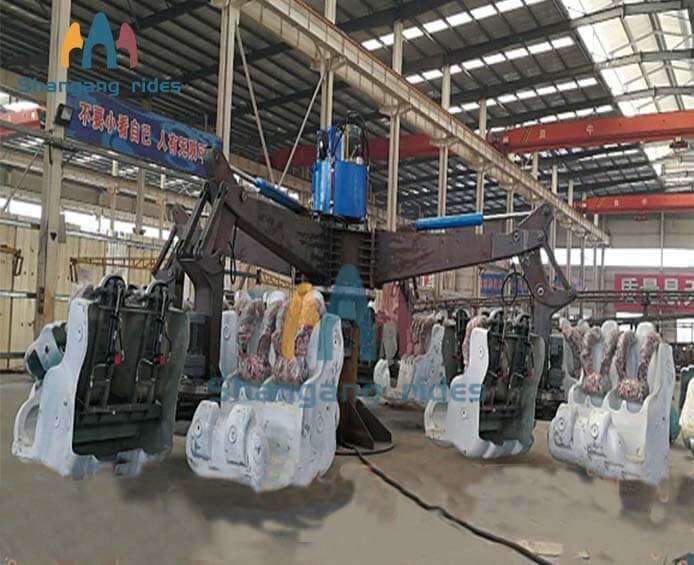

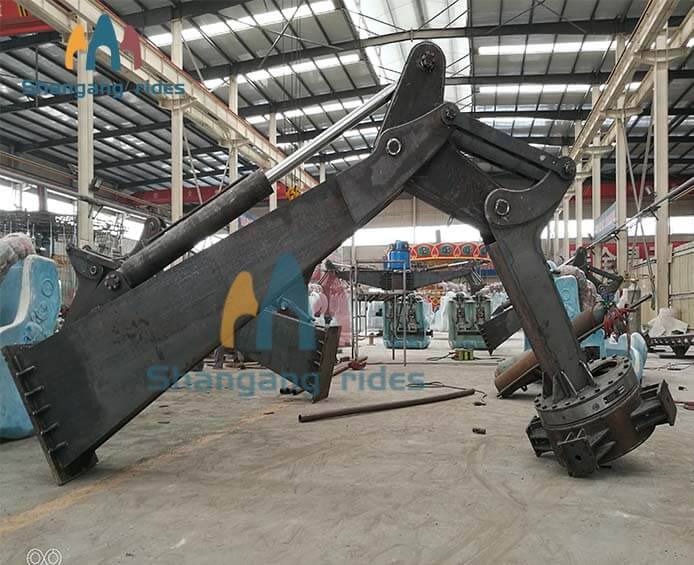

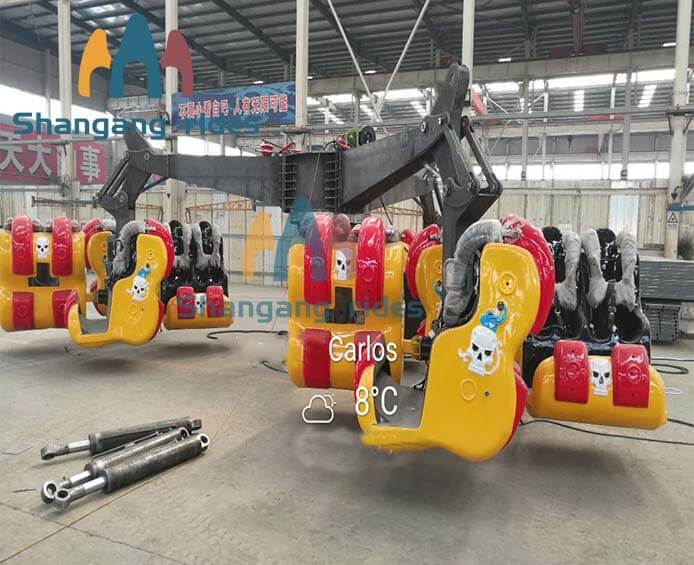

The energy storm amusement device is a newly designed upgraded version of the suspended cabin amusement machine, which integrates lifting, revolution and autorotation. It is a kind of amusement machine that rotates around the vertical axis and has similar forms of movement, enabling passengers to experience more fun; The cabin is suspended on the boom through the connecting rod and slewing ring, and the boom is connected with the column through the pin shaft and oil cylinder, and movable connection can be realized.
Mechanical transmission part of energy storm: mainly composed of motor, reducer, big and small gears, slewing ring, etc. The speed torque output by the motor in the middle of the energy storm drives the small gear wheel to rotate after decelerating and increasing the pitch, thus driving the big gear to rotate. The big slewing ring rotates to drive the boom to rotate and overturn (revolution). Similarly, the speed torque output by the motor of the boom drives the small gear wheel to rotate after decelerating and increasing the pitch, thus driving the small slewing ring to rotate, so that the cabin rotates in the horizontal direction (autorotation).
The SUPER EXTREME RIDE is huge and super exciting!
Shangang amusement rides can provide the best combination of project solutions. Shangang Amusement rides have the capabilities of park design, amusement equipment recommendation, park construction, amusement park operation, training, and equipment maintenance. Shangang rides can provide various types of rides for amusement parks and theme parks, including thrill rides, children and family rides, theme park rides, carnival rides, playground rides, mechanical rides, etc. Shangang rides will help you choose the best rides for your park!
Shangang rides has a professional senior, knowledgeable, innovative, experienced and dynamic business team. A set of scientific and mature tourism planning schemes have been summarized and sorted out in the actual project for many years. Each team member has participated in tourism planning and design projects, including: tourism complexes, theme parks, urban parks, mountain canyons, lakes and wetlands, rivers and valleys , forest grassland, agricultural leisure and countryside, tourism real estate, vacation, religious tourism, hot spring tourism, coastal tourism, desert tourism, camping, ice and snow tourism, ethnic folk culture, industrial tourism and other high-quality design achievements.
Shangang rides is an amusement equipment supplier.
Shangang rides provides planning and design of playgrounds and parks, customization of rides, design, production, sales and installation of amusement equipment. Our company provides new, exciting and fun amusement equipment. It can attract tourists and increase the income and fame of your park.
Shangang rides provides planning and design of indoor children's playground, production, sales and installation of naughty castles, doll machines, game consoles, simulators, slides, climbing walls, etc. Provide operation guidance for indoor children's parks to help you make profits as soon as possible and recover costs.
Shangang rides provides design and production of outdoor bouncy castles and accepts custom shapes and colors. Great price and good quality. It is the best choice for you to do business and make money.
